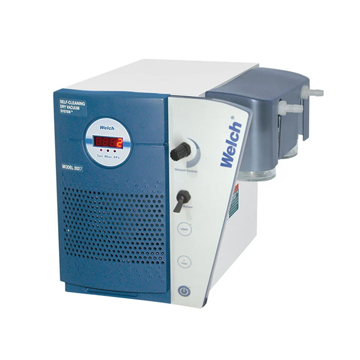

202701 Welch Self Cleaning Dry Vacuum System w/ Digital Gauge 115Volts

SKU:
202701
202701 Welch Self Cleaning Dry Vacuum System w/ Digital Gauge 115Volts
$6,094.00
Adding to cart… The item has been added

Description

Product Details

  • Automatic Self-cleaning purge maintains efficiency, extends diaphragm life
  • Free air displacement: 35 L/min (1.2 CFM)
  • Incremental ballast switch enables fast response to bumping / foaming

Suggested Applications

  • Rotary Evaporator

Complete oil-free dry vacuum systems for rotary evaporators and concentrators. Corrosion-resistant PTFE diaphragm vacuum pump systems enable superior control and efficiency for each evaporation. Provides controlled solvent stripping in flasks up to 5 L. Use 2 torr Model 2027 for solvents with atmospheric B.P.

Specifications

2025
2026
2027
2028
Free Air Displacement @ 60 Hz, cfm (L/min)
1.2 (35)
1.2 (35)
1.2 (35)
1.2 (35)
Ultimate Pressure, torr
9
2
2
2
Gauge
Analog Gauge
Analog Gauge
Digital
Programmable with Digital
Adjustable Vacuum & Gast Ballast
Yes
Yes
Yes
Yes
Motor Power, HP (kW) at 60 Hz
1/5 (150)
1/5 (150)
1/5 (150)
1/5 (150)
Inlet Connection Thread, NPT
3/8"
3/8"
3/8"
3/8"
Tubing Needed, I.D. in. (mm)
1/4 (7)
1/4 (7)
1/4 (7)
1/4 (7)
Weight, lbs (kg)
30 (16.4)
30 (16.4)
30 (16.4)
30 (16.4)
Dimensions, LxWxH, in (mm)
13.6x12x11.3 (350x310x290)
13.6x12x11.3 (350x310x290)
13.6x12x11.3 (350x310x290)
13.6x12x11.3 (350x310x290)
115V Order Number
202501
202601
202701
202801
