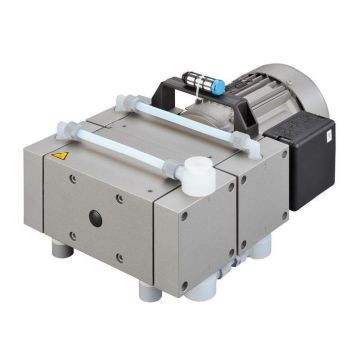

2052B-01 Welch-Ilmvac PTFE High Capacity Diaphragm Vacuum Pump 115Volts

SKU:
2052B-01
2052B-01 Welch-Ilmvac PTFE High Capacity Diaphragm Vacuum Pump 115Volts
$5,490.00
Adding to cart… The item has been added

Description

Models 2052, 3054, 2062, 2064 and 2067 have wetted parts are made of PTFE and other fluoinated plastics. High flow models are commonly used for scale up operations.

Model 2163 has coated heads for moderate solvent vapors.

Note: Government regulations require Welch to obtain an end-user certificate this product if either used or exported outside of the United States.

Specifications

Technical Data

2067
2054
2064
2163
2052
2062
Free Air Displacement @ 60 Hz, cfm (L/min)
7.8 (221)
3.4 (100)
6.1 (173)
6.1 (173)
2.3 (65)
4.2 (119)
Ultimate Pressure, torr
56
6
6
6
1.5
1.5
Motor Power, HP (kW) at 60 Hz
0.5/0.6 (0.37/0.44)
1/2 (0.37)
1/2 (0.37)
1/2 (0.37)
0.53 (0.37)
0.53 (0.37)
Inlet (Exhaust) Connection Thread NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
NW16 - 1/4" NPT
Tubing Needed, I.D. in. (mm)
Hose Connector Available
1/4 (8)
Hose Connector Available
Hose Connector Available
1/4 (8)
1/4 (8)
Weight, lbs (kg)
72.3 (32.8)
40.3 (18.3)
72.3 (32.8)
72.3 (32.8)
40.3 (18.3)
40.3 (18.3)
Dimensions, LxWxH, in (mm)
21x11x12 (530x280x310)
9x15x7 (230x380x180)
21x11x12 (530x280x310)
21x11x12 (530x280x310)
9x15x7 (230x380x180)
21x11x12 (530x280x310)
115V Order Number
2067B-01
2054B-01
2064B-01
2064B-01
2052B-01
2062B-01
