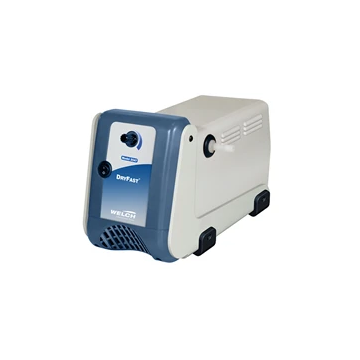

2042B-01 Welch DryFast Ultra PTFE Diaphragm Vacuum Pump 115Volts

SKU:
2042B-01
2042B-01 Welch DryFast Ultra PTFE Diaphragm Vacuum Pump 115Volts
$4,755.00
Adding to cart… The item has been added

Description

Product Details

  • Chemical Resistant
  • Oil-Free
  • Tuneable Vacuum

Suggested Applications

  • Aspiration
  • Replace House Vacuum
  • Rotary Evaporator
  • Solvent Degas

Welch DryFast™ PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, dual head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.

Technical Data

Model Number
2032
2042
Applications
Rotary Evaporation/Distillation (lowvolatility solvents
Rotary Evaporation/Distillation (lowvolatility solvents
Type
Laboratory Vacuum Pump
Laboratory Vacuum Pump
Free Air Displacement cfm (l/min.) @60Hz
0.9(25)
1.2(35)
Free Air Displacement m3/hr (l/min.) @50Hz
1.25(21)
1.75(29)
Ultimate Pressure
2(2.7)
2(2.7)
Maximum Vacuum
29.85
29.85
Motor Horsepower (watts)
1/5(150)
1/5(150)
Adjustable Vac. / Gas Ballast
Yes
Yes
Tubing Needed
1/4(7)
1/4(7)
Intake Thread NPT
M14(1/8)
M14(1/8)
Overall Dimensions LxWxH in. (cm)
13.8x6.8x8.8 (35.2x7.2x22.3)
13.8x6.8x8.8 (35.2x7.2x22.3)
Ship Weight
25(11.3)
25(11.3)
Shipping Carton Dimensions LxWxH in. (cm)
21x14x15 (52x35x37)
21x14x15 (52x35x37)
Adjustable Vacuum
Knob
Knob
