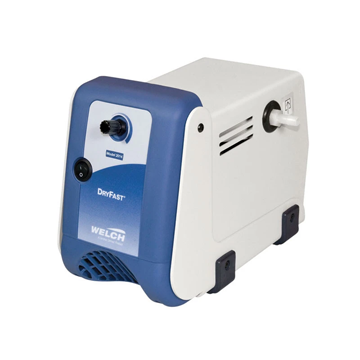

2014B-01 Welch DryFast Collegiate Diaphragm Vacuum Pump 115Volts

SKU:
2014B-01
2014B-01 Welch DryFast Collegiate Diaphragm Vacuum Pump 115Volts
$2,091.00
Adding to cart… The item has been added

Description

Product Details

  • Chemical Resistant
  • Oil-Free
  • Tuneable Vacuum

Suggested Applications

  • Replace Water Aspirator
  • Rotary Evaporator
  • Vacuum Filtration

Welch DryFast™ PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, single head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.

Specifications

2014
2037
2047
2034
2044
2032
2042
Free Air Displacement @ 60 Hz, cfm (L/min)
1.2 (35)
1.8 (50)
2.5 (70)
0.9 (25)
1.2 (35)
0.9 (25)
1.2 (35)
Ultimate Pressure, torr
40
35
35
9
9
2
2
Motor Power, HP (kW) at 60 Hz
1/5 (150)
1/5 (150)
1/5 (150)
1/5 (150)
1/5 (150)
1/5 (150)
1/5 (150)
Inlet (Exhaust) Connection Thread NPT
M14 (1/8)
M14 (1/8)
M14 (1/8)
M14 (1/8)
M14 (1/8)
M14 (1/8)
M14 (1/8)
Tubing Needed, I.D. in. (mm)
1/4 (7)
1/4 (7)
1/4 (7)
1/4 (7)
1/4 (7)
1/4 (7)
1/4 (7)
Weight, lbs (kg)
15 (6.8)
21.25 (9.6)
21.25 (9.6)
21.25 (9.6)
21.25 (9.6)
21.25 (9.6)
21.25 (9.6)
Dimensions, LxWxH, in (mm)
12x7x8.3 (310x180x20)
13.8x6.8x8.8 (350x170x220)
13.8x6.8x8.8 (350x170x220)
13.8x6.8x8.8 (350x170x220)
13.8x6.8x8.8 (350x170x220)
13.8x6.8x8.8 (350x170x220)
13.8x6.8x8.8 (350x170x220)
115V Order Number
2014B-01
2037B-01
2047B-01
2034B-01
2044B-01
2032B-01
2042B-01
